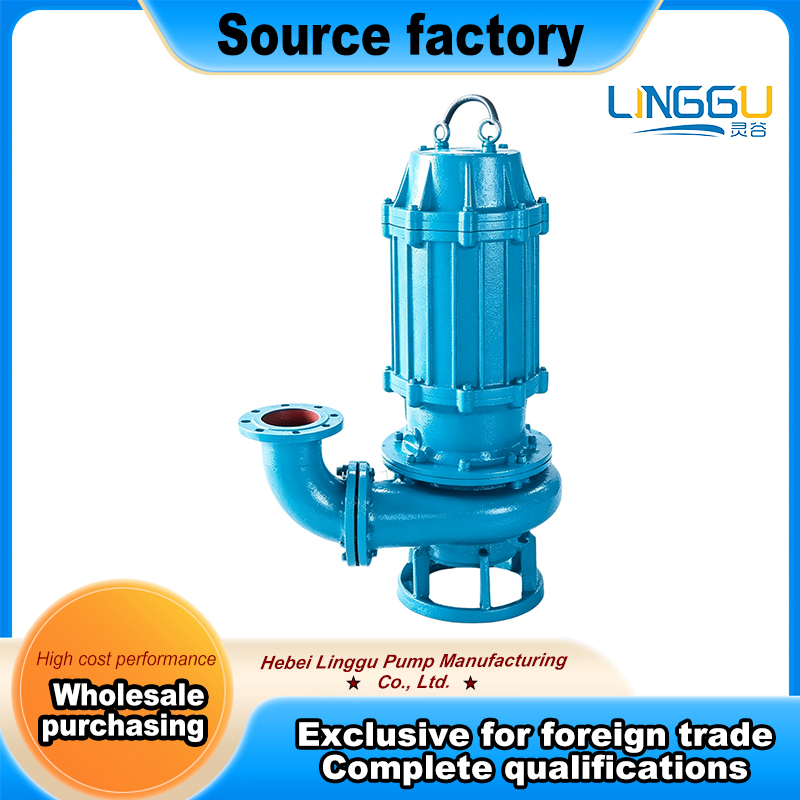

To solve these harsh‑condition pain points, we developed our Abrasion Resistant Submersible Slurry Pump, a robust Agitator Equipped Submersible Slurry Pump, engineered as heavy‑duty High Solid Submersible Mud Pump Unit. This Wear Resistant Slurry Pump belongs to our complete Industrial Slurry Pump portfolio, specially built for mining dredging and high‑concentration slag‑removal assignments.
Core Structural Design: Built‑in Agitator & Heavy‑Duty Wear‑Proof Construction
Our Abrasion Resistant Submersible Slurry Pump covers full model spectrum: ZJQ submersible slurry pump, NSQ submersible mud‑extracting pump, agitator‑fitted submersible slurry pump, pontoon‑mounted submersible slurry pump, high‑chrome wear‑resistant submersible slurry pump, rubber‑lined anti‑corrosion submersible slurry pump, extended‑agitator variant, mine‑grade, desulfurization‑grade, mobile‑type, barge‑mounted and explosion‑proof submersible slurry pumps.
As an Agitator Equipped Submersible Slurry Pump, it integrates bottom integrated agitator impeller. The agitator breaks up deposited slag and sediment, suspends settled solids, enabling our High Solid Submersible Mud Pump Unit to draw high‑density slurry without manual pre‑stirring. Wide‑channel non‑clog hydraulic passage allows large‑size gravel and particles to pass smoothly.
Critical wetted components adopt Cr27 high‑chromium alloy impellers, high‑chrome wear‑resistant protective liners and sleeves. We also supply options including polyurethane rubber lining, heavy‑duty ductile iron pump casing, reinforced cast‑steel pump shaft. Multi‑stage silicon‑carbide sand‑proof mechanical seals and fluororubber anti‑corrosion oil seals defend internal motor assemblies from sand infiltration and medium erosion. Key rotating parts go through impeller dynamic balance correction and overall wear‑resistant heat‑treatment hardening process.
Unlike Horizontal Slurry Pump, this Wear Resistant Slurry Pump runs fully submerged underwater, eliminating pump‑house construction work. Both fixed installation and pontoon floating mobile setup are supported. Built‑in over‑heat and water‑leakage motor protection enhances operational safety. Variable‑frequency flow adjustment is available for flexible output matching.
Technical Specification & Model Variant Reference Table
| Item | Specification |
|---|---|
| Product Series | Abrasion Resistant Submersible Slurry Pump |
| Representative Models | ZJQ, NSQ, agitator‑equipped, pontoon‑mounted, explosion‑proof, desulfurization, barge‑mounted submersible slurry pump |
| Installation Mode | Submerged underwater installation; fixed or pontoon floating mobile operation |
| Caliber Range | DN50‑DN300 |
| Core Wetted Material | Cr27 high‑chromium alloy, polyurethane rubber lining, heavy‑duty ductile iron, cast‑steel shaft, silicon‑carbide mechanical seal |
| Core Structure Feature | Bottom integrated agitator impeller, wide anti‑clog flow channel, dual‑shell wear‑resistant protection, multi‑layer sand‑proof sealing |
| Protection Feature | Built‑in over‑heat & water‑leakage motor protection |
| Operation Capability | 24‑hour continuous duty, fresh‑water and seawater compatible, frequency‑conversion adjustable flow |
| Key Performance | Handles high‑solid‑content slurry, large‑particle passage, anti‑abrasion against sand‑particle erosion, low‑clogging |
| Product Category | Abrasion Resistant Submersible Slurry Pump,High Solid Submersible Mud Pump Unit,Agitator Equipped Submersible Slurry Pump,Industrial Slurry Pump,Wear Resistant Slurry Pump,Horizontal Slurry Pump,Mining |
Wide Application Coverage for Mining, Dredging & Industrial Site Work
This Abrasion Resistant Submersible Slurry Pump serves extensive heavy‑duty scenarios across mining, dredging and process industry: ‑ Mining tailings pond slag removal, coal‑washing plant coal‑mud extraction, mineral‑processing plant pulp transfer ‑ Power‑plant desulfurization gypsum pit desilting, metallurgical slag‑pit discharge, waste‑incineration‑plant ash‑pit sludge removal ‑ River‑lake dredging and silt remediation, cofferdam project slag pumping, sand‑washing and sand‑mining sites ‑ Construction‑site foundation pit mud clearance, small‑scale gold‑mining sand extraction, stone‑processing plant sediment‑tank cleaning ‑ Aquaculture pond desilting, wastewater‑treatment high‑concentration sludge extraction
For projects with explosion‑risk atmosphere, we provide explosion‑proof motor configured variants. Floating pontoon assembly can be matched for convenient mobile operation on open water surface. Though mainly submersible design, we can also supply matching Horizontal Slurry Pump as alternative surface‑mounted Industrial Slurry Pump upon customer project requirements.
Key Selection Guidance for Wear Resistant Slurry Pump
When you source High Solid Submersible Mud Pump Unit, please evaluate below critical points to extend service life and avoid premature failure:
- Confirm slurry solid concentration, maximum particle size and abrasive property, select proper high‑chrome alloy or polyurethane lining material.
- Distinguish medium environment: fresh‑water or seawater, weak‑corrosive components.
- Confirm installation mode: fixed underwater mounting or pontoon floating mobile operation.
- Verify continuous running duty cycle and whether explosion‑proof configuration is required.
- Confirm target flow and head parameters for accurate model matching.
Even premium Wear Resistant Slurry Pump will suffer accelerated wear if material and parameters mismatch actual working‑condition.
FAQ
Q1: What advantages does agitator‑equipped submersible slurry pump bring compared with regular submersible slurry pump?
A: Our Agitator Equipped Submersible Slurry Pump comes with bottom stirring impeller, which agitates settled sediment into suspended slurry. It greatly improves solid‑content handling capacity and avoids sediment accumulation around pump suction inlet.
Q2: Can this abrasion resistant submersible slurry pump run continuously 24 hours?
A: Yes. The unit is designed for non‑stop industrial operation. Built‑in over‑heat and leakage protection safeguards motor. Routine inspection of sealing assemblies and wear‑parts replacement is suggested for long‑term stable performance.
Q3: Can it be used in seawater environment?
A: Yes, seawater‑resistant casting options are available. Please notify our engineering team of seawater working‑condition for proper material recommendation.
Q4: What is the difference between submersible slurry pump and horizontal slurry pump?
A: Abrasion Resistant Submersible Slurry Pump works submerged underwater with agitator function, no pump‑house required, easy mobile deployment. Horizontal Slurry Pump installs above‑ground, demands suction pipeline arrangement and pump foundation, suits fixed‑station heavy‑duty Industrial Slurry Pump assignments.
Conclusion
Our Abrasion Resistant Submersible Slurry Pump is a heavy‑duty Agitator Equipped Submersible Slurry Pump and reliable High Solid Submersible Mud Pump Unit. As robust Wear Resistant Slurry Pump within our full‑range Industrial Slurry Pump portfolio, it delivers outstanding abrasion‑resistance and high‑solid slurry handling capability for Mining, dredging and multiple industrial slag‑removal projects. We also support alternative Horizontal Slurry Pump solutions for surface‑mount installation requirements.
Backed by complete pump manufacturing capability, Hebei Linggu Water Pump Manufacturing Co., Ltd welcomes global industrial buyers for working‑condition assessment, model selection consultation and bulk‑order cooperation.
